SCADA Automation of Water Treatment Plants (WTPs)
Smart Automation. Reliable Water Supply. Sustainable Operations.
Frinso Technologies provides SCADA-based automation for Water Treatment Plants (WTPs) to ensure safe, consistent, and efficient potable water production under AMRUT 2.0, Smart City, and Jal Jeevan Mission projects.
Precision, Efficiency & Safety — Automated from Source to Supply
Modern Water Treatment Plants require automated control and real-time visibility to maintain consistent output quality, manage energy, and ensure reliability. Frinso’s SCADA empowers utilities and EPCs with data-driven precision and total process transparency.
Real-time process visibility
Consistent water quality control
Energy-efficient operation
Predictive maintenance & safety alarms

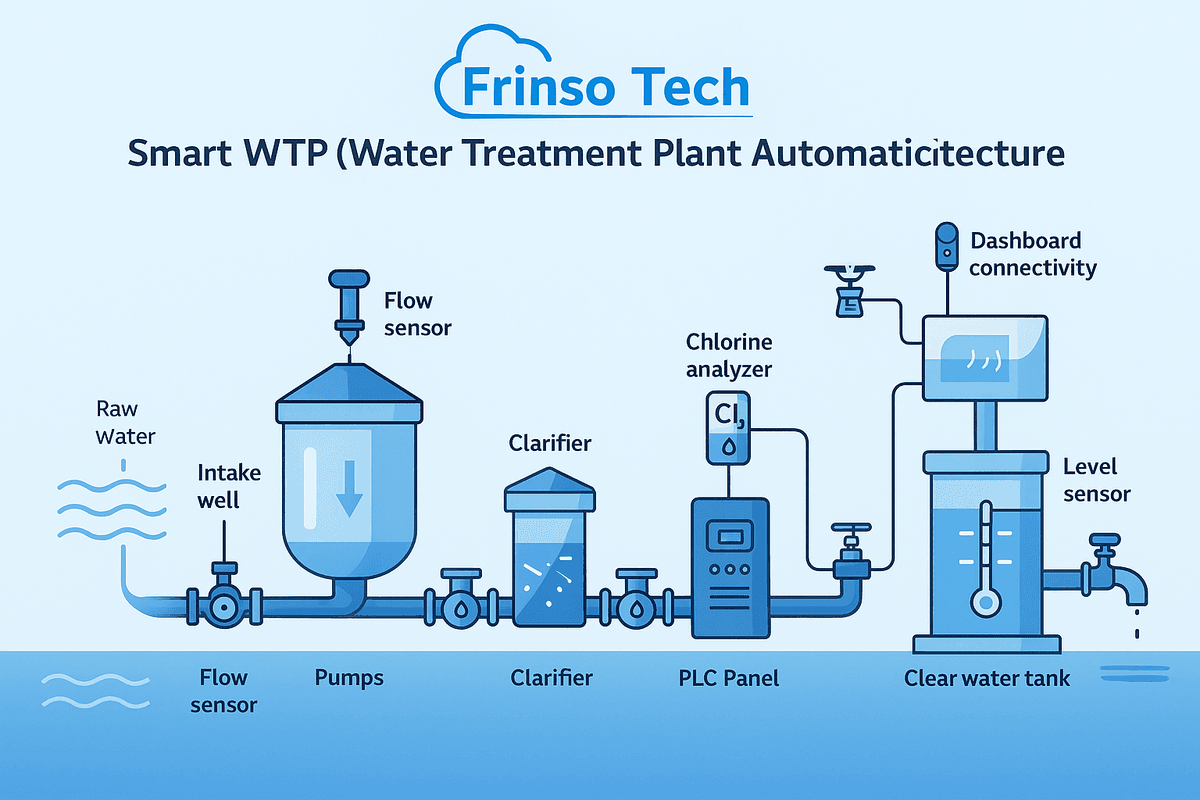

End-to-End SCADA Integration Across Every Treatment Stage
Raw Water Intake & Pump House
Draws raw water from source
Coagulation & Flocculation
Chemical mixing for particle aggregation
Sedimentation
Settling of suspended solids
Filtration
Removes fine impurities
Disinfection
Chlorine dosing for safe water
Clear Water Sump & Pumping
Treated water storage and pumping
Distribution / OHT Filling
Transfer to network or tanks
Digital Command & Control for Smart Water Treatment
Frinso’s WTP SCADA solution integrates **PLCs, IoT gateways, and advanced dashboards** to deliver complete automation — ensuring **safe, efficient, and optimized water supply operations**.
PLC-based local control with IoT data logging
Real-time flow, level, turbidity & chlorine monitoring
Automated pump, valve & backwash operation
Remote dashboard access for operators & engineers
Integration with AMRUT 2.0, Smart City & JJM centers
Centralized control with energy optimization logic
Parameters Monitored & Controlled
Flow Rate & Totalized Flow
Tracks raw & treated water discharge in real time.
Level Measurement
Monitors sump, clarifier & filter bed levels continuously.
Turbidity Monitoring
Ensures clarity of treated water after filtration.
pH & Chlorine Control
Maintains safe, potable water standards automatically.
Pump & Energy Analytics
VFD-based control with energy data insights.
Fault & Alarm Logs
Real-time alerts for pump, motor, or pressure faults.
CCTV Feed Integration
Visual supervision for safety and remote verification.
Instruments & Field Integration
Electromagnetic Flow Meters
High-accuracy measurement of raw, treated & recycled water.
Turbidity & pH Analyzers
Ensures continuous quality of treatment and filtration process.
Chlorine & Residual Analyzer
Maintains disinfectant dosing precision for potable standards.
Level Sensors (Ultrasonic / Pressure)
Real-time monitoring of sump, tank & clarifier water levels.
Pressure Transmitters
Detects line pressure and safeguards against pipe bursts.
Auto-Control Dosing Pumps
Automates alum & chlorine dosing based on flow rate feedback.
PLC + RTU Panels
Controls logic, collects data & interfaces with SCADA remotely.
VFD Panels & Multi-function Meters
Provides smooth motor control and tracks energy performance.
CCTV Cameras (Local + Remote)
Live visual monitoring integrated with SCADA interface.
Protocols Supported: MODBUS RTU / TCP • OPC-UA • MQTT • LoRaWAN • GSM/4G • Fiber Ethernet
Key Features
Real-Time Automation
Fully automated PLC logic control
Data Analytics & Reports
Trends for flow, quality & energy
AI-Based Alerts
Predictive equipment health alarms
Water Quality Tracking
Continuous turbidity & chlorine check
Energy Management
Tracks MFM and VFD-based consumption
Remote Monitoring
Web & mobile dashboards
CCTV Integration
Real-time video monitoring
Cyber Security
Encrypted communication & access roles

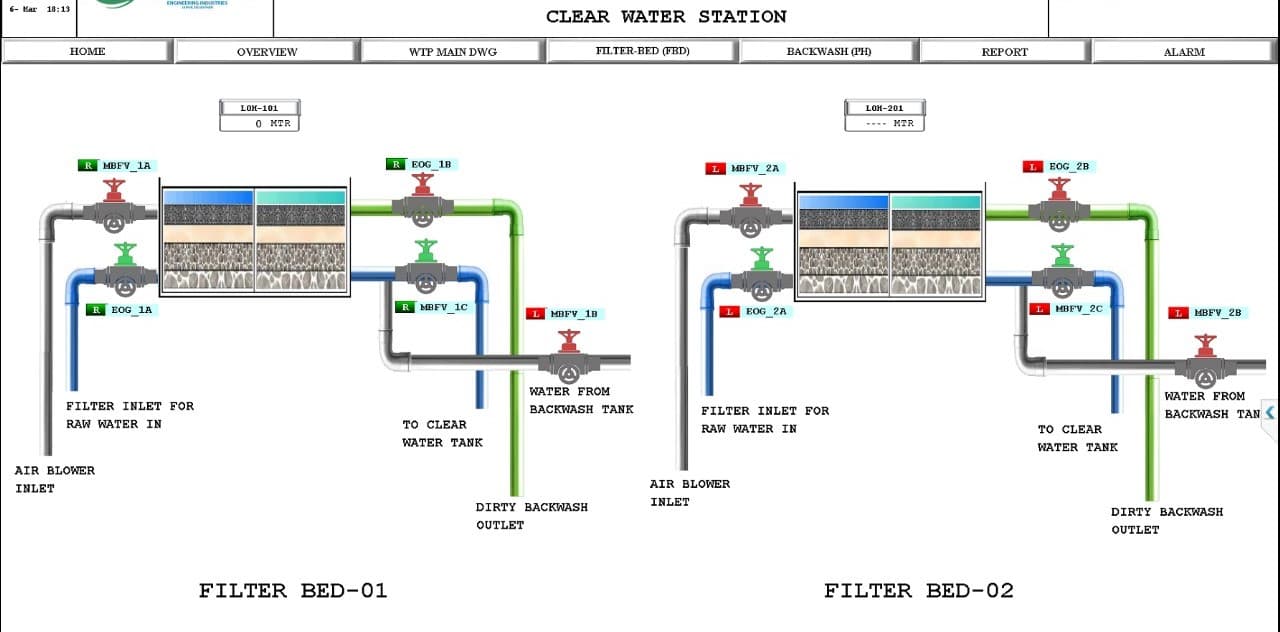

Centralized SCADA Dashboard for Intelligent WTP Operations
Operators can visualize live plant data — flow, pH, turbidity, chlorine, and energy — all in a unified SCADA dashboard for data-driven control and optimization.
Benefits & Impact Metrics
Continuous Safe Water Supply
Process Optimization
Energy Efficiency Gain
Predictive Maintenance
CPCB/BIS Compliance
Build Smarter, Safer, and Sustainable Water Treatment Plants with Frinso
Frinso’s SCADA Automation for WTPs delivers intelligent monitoring, automatic control, and energy optimization for potable water production under AMRUT 2.0, Smart City & JJM initiatives.
