SCADA Automation for Urban Water Supply & Wastewater Systems

Smart, Sustainable & Connected Water Networks for AMRUT 2.0, PHED & Smart City Missions. Frinso integrates sensors, PLC/RTU, IoT gateways and centralized SCADA for total control — from source to consumer.

Request a DemoContact Us

System Architecture — From Source to Consumer

A connected architecture spanning sensors, PLCs, SCADA servers, and dashboards — ensuring full visibility, automation, and analytics across the entire water network.

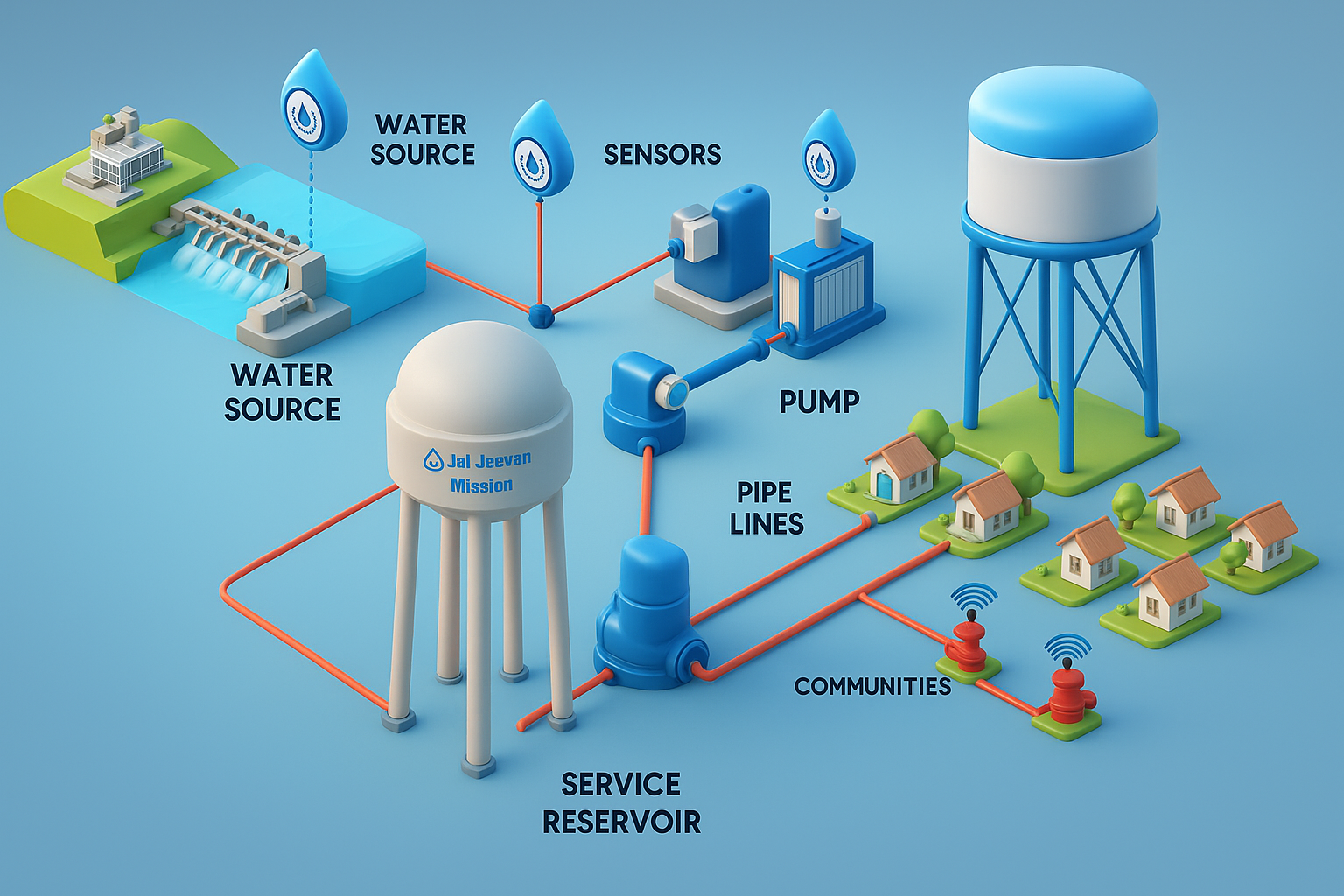

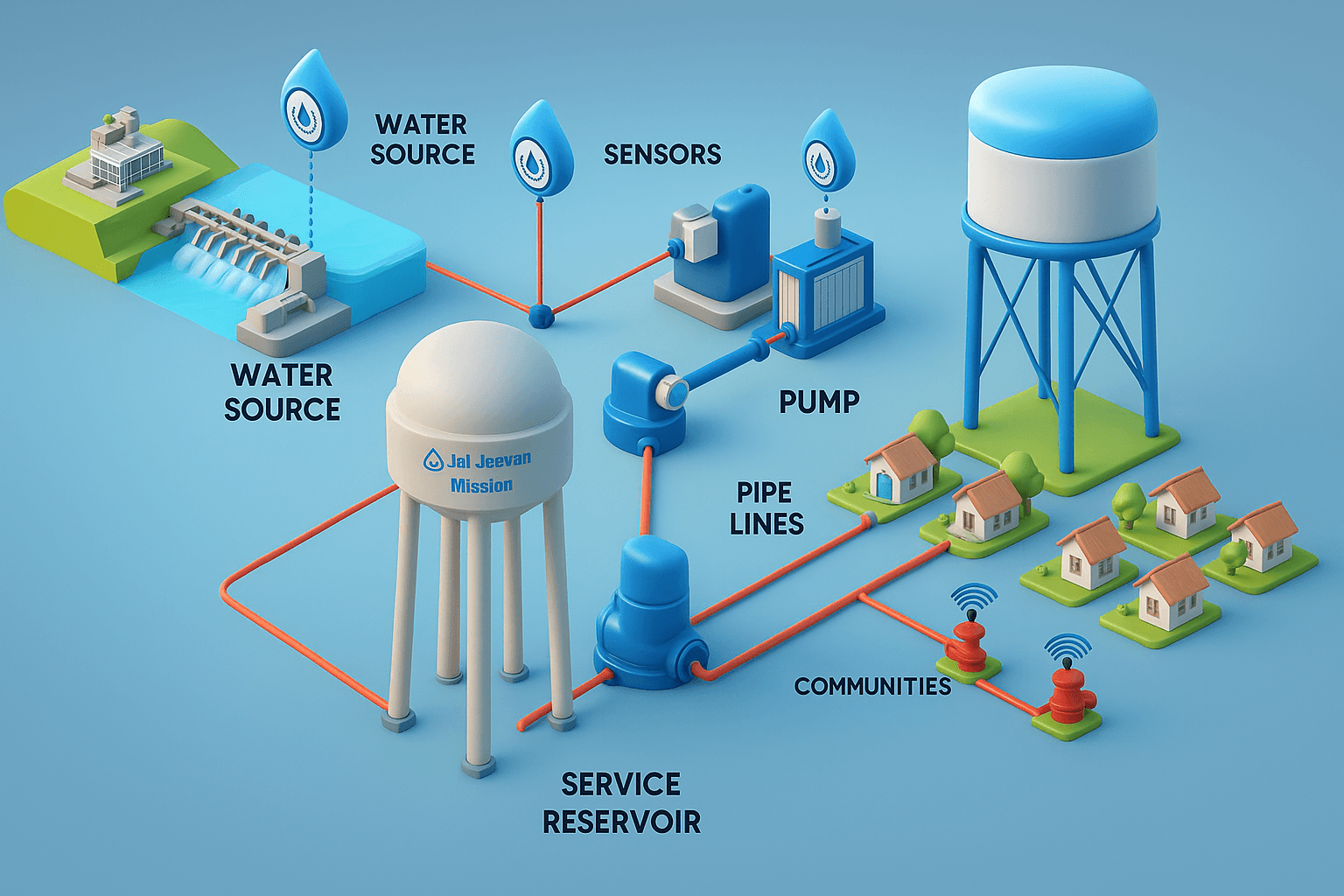

Urban Water SCADA Architecture

A. Source & Intake Pumping Station

  • Flow & level monitoring; suction/delivery pressure logging
  • Auto ON/OFF of pumps based on sump levels
  • Electrical parameters (V, I, PF, Energy), alarms & trends

Instruments: EM Flow Meter, Pressure Sensors, Level Sensor, MFM, CCTV

B. Water Treatment Plant (WTP)

  • pH, turbidity, chlorine, flow — real-time monitoring
  • Auto filtration, backwash, dosing & quality feedback control
  • Energy analytics & CCTV integration

Instruments: Flow/Level sensors, pH/Turbidity/Cl analyzer, PLCs, MFMs

C. OHT / GSR / GLSR Reservoirs

  • Level monitoring & overflow prevention
  • Inlet/outlet automation with chlorine tracking
  • CCTV monitoring & local dashboards

Instruments: Level Sensors, Flow Meters, Chlorine Analyzers, CCTV

D. Distribution Network

  • DMA-wise flow & pressure monitoring; AI leak detection
  • PRV/valve actuation & GIS-linked alert dashboards

Instruments: Pressure transmitters, Flow meters, Smart valves, RTUs, IoT gateways

E. Smart Water Metering at Homes

  • AMI/AMR with two-way communication; live consumption
  • Auto billing, leak alerts, demand forecasting

Instruments: Ultrasonic/Mag meters with LoRaWAN / NB-IoT

F. Wastewater & Reuse Networks

  • STP inflow/outflow: pH, DO, BOD, turbidity, aeration & sludge control
  • Treated water reuse flow measurement & lift station integration

Instruments: Flow, DO, pH, Level sensors; PLC/RTU; CCTV

Powering India’s Smart Water & Wastewater Infrastructure

AMRUT 2.0, Smart City Mission, and State PHED & WRD programs target 24×7 safe supply, NRW reduction, and smart reuse of treated wastewater. Frinso’s SCADA + IoT provides real-time visibility, energy optimization, and operational efficiency to meet these goals.

National Missions
DMA & Distribution
Sustainability
Operational KPIs
Urban Utilities

One Platform. Total Control. Every Drop Digitized.

Frinso’s Smart SCADA connects source intake, WTPs, OHT/GSR, distribution networks, smart meters, and wastewater/reuse plants into a single, centralized system. Modular architecture with cloud/on-prem deployment, APIs for ICCC integration, and analytics for data-driven operations.

End-to-End Automation

Source → WTP → OHT → Distribution → Meter → STP/Reuse

Analytics & Reports

Trends, KPIs, NRW, compliance, energy

Cloud & On-Prem

Hybrid architecture with secure APIs

PLC/RTU Control

Deterministic logic, local fallback, OTA

Energy Management

MFM integration, pump/VFD optimization

GIS & ICCC

Asset geo-view, Smart City command center

Integration with National & State Schemes

Seamless compatibility with AMRUT 2.0, Smart Cities, PHED programs, Mission Bhagiratha, and WRD initiatives — including ICCC/IC4 integration, GIS overlays, and standardized reporting.

AMRUT 2.0

Urban water, recycling, metering

Smart City Projects

24×7 water, ICCC integration

Mission Bhagiratha

Surface water treatment & supply

PHED

Rural/urban schemes, telemetry

WRD

Canals, reservoirs, gate ops

ICCC/IC4

API, GIS, unified dash

SCADA System Components

PLC / RTU Panels

Local automation & telemetry

Sensors & Instruments

Flow, level, pressure, quality

SCADA Software

Visualization, control, alarms

Energy (MFM)

Power usage & efficiency

GIS Integration

Geospatial asset views

Communication

LoRa, RF, GPRS, Fiber

CCTV Surveillance

Local & remote monitoring

Cyber Security

Encrypted, role-based access

Features & Capabilities

  • Real-time acquisition & visualization
  • Automated pumps, valves & dosing
  • AI-based leak & anomaly detection
  • Cloud analytics & reports
  • Energy optimization & KPIs
  • Alarms & notifications
  • GIS-linked network view
  • Smart meter integration & billing
  • 24×7 CCTV with centralized control

Benefits & Impact Metrics

24×7
Water Availability
30–40%
Operational Efficiency
20–25%
Energy Savings
30–50%
NRW Reduction
AI
Predictive Analytics
Reuse
Circular Water Economy
99.5%
System Uptime
Auto
Compliance Reports

Connect. Control. Conserve. — The Future of Smart Water Management

Frinso empowers cities and utilities with SCADA-driven automation — ensuring sustainability, efficiency, and transparency under AMRUT 2.0, PHED, WRD & Smart City projects.
