FRINSO V1.0 – Industry 4.0 IoT Edge
Secure, rugged, and intelligent edge gateway for water, energy, and industrial automation—built in India for the world. Collects, computes, and connects your assets in real time.

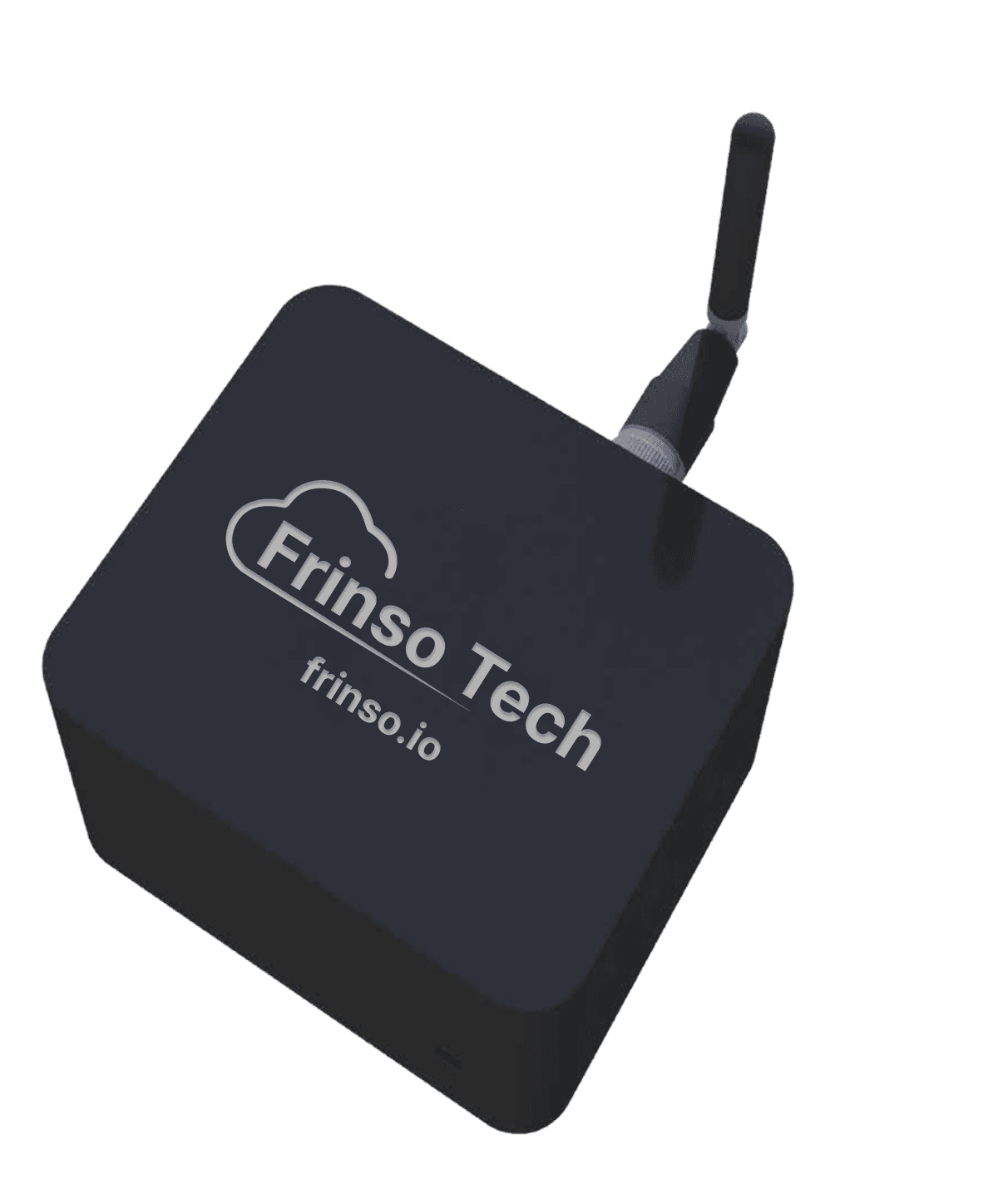

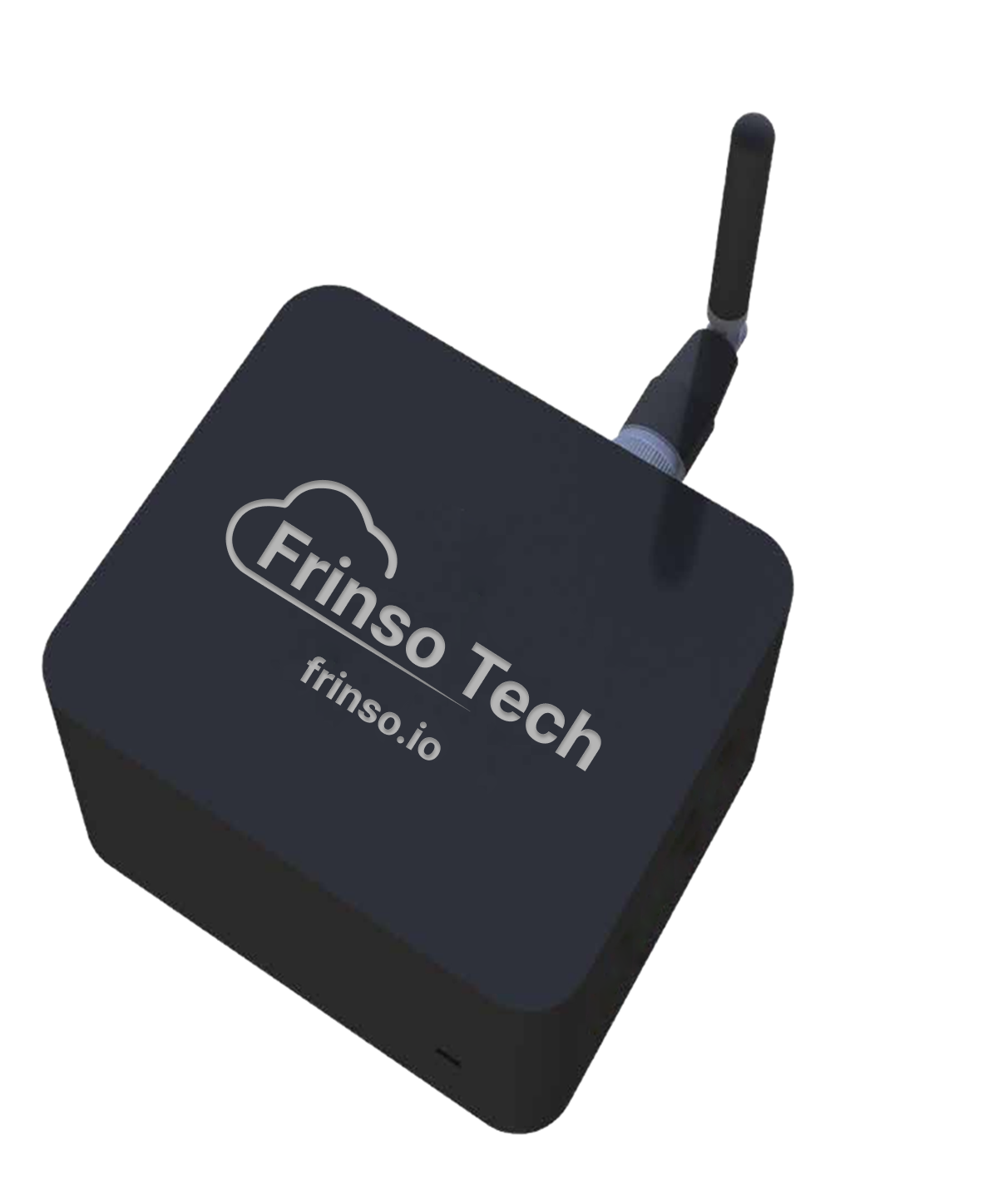

*Illustration — actual product may vary by SKU.
Overview
FRINSO V1.0 is a next-gen Industry 4.0 IoT Edge gateway engineered for harsh environments. It connects legacy and modern assets, runs on-device analytics, buffers data during network outages, and publishes securely to cloud or on-prem systems. Tailor-made for water utilities, smart energy, railways, factories, and infrastructure monitoring.
Rugged Edge Compute
ARM Quad-Core, hardware crypto, real-time data ops.
Any Network
4G/LTE, Ethernet, Wi-Fi; failover and store-and-forward.
Any Device
Modbus RTU/TCP, 4-20mA, digital I/O, pulse, RS-485/232.
Key Features
Edge Processing
On-device rules, filtering, anomaly flags; reduce cloud noise & cost.
Real-time Telemetry
Sub-second polling with buffering; time-sync over NTP/GPS.
Multi-Protocol
Modbus RTU/TCP, MQTT 3.1.1/5.0, HTTPS/REST, OPC-UA (optional).
Multi-Bearer
Dual SIM 4G/LTE failover; Ethernet primary/secondary; Wi-Fi client/AP.
Security-First
Secure boot, signed OTA, TLS 1.2+, role-based access.
Zero-Touch Provisioning
QR/device code onboarding, cloud enrollment in minutes.
Hardware Specifications
Compute
- • ARM Cortex-A53 quad-core @ 1.5 GHz
- • 2 GB LPDDR4 RAM, 8–32 GB eMMC
- • Hardware crypto engine (AES/SHA/RSA)
- • Real-time clock with battery backup
Interfaces
- • 2× RS-485 (isolated), 1× RS-232
- • 1× 10/100 Ethernet (RJ45), optional 2nd
- • 4× DI (opto), 2× DO (relay), 2× AI (4–20 mA)
- • 1× USB-C (service), 1× micro-USB (debug)
Wireless
- • 4G/LTE Cat-4, 3G/2G fallback, dual-SIM
- • Wi-Fi 2.4 GHz b/g/n (client/AP)
- • GPS/GLONASS for time/geo-tag (optional)
- • External SMA antenna for LTE
Mechanical
- • Enclosure: industrial ABS, matte black
- • Mounting: DIN-rail / wall / panel
- • Dimensions: 110 × 90 × 42 mm (typ.)
- • Weight: ~240 g
Connectivity & Protocols
Industrial Protocols
Modbus RTU over RS-485, Modbus TCP over Ethernet/Wi-Fi. OPC-UA (gateway mode) optional. Pulse counting for meters; digital event/limit alarms.
Publish & Integrate
MQTT 3.1.1/5.0 with TLS; HTTPS/REST push; Webhooks; CSV/JSON export; store-and-forward with retry; configurable QoS; topic templates per asset.
I/O & Interfaces
Digital Input
4× opto-isolated (dry/wet), 1–30 V
Digital Output
2× relay 2 A @ 30 VDC / 250 VAC
Analog Input
2× 4–20 mA (16-bit ADC), loop detect
Serial
2× RS-485 (isol.), 1× RS-232, 300–115200 bps
Ethernet
10/100 RJ45, DHCP/static, VLAN (opt.)
USB/Service
USB-C service, micro-USB debug console
Edge AI & Computing
Execute lightweight anomaly detection, thresholding, moving averages, and custom rule chains at the edge. Optional on-device ML runtimes (TensorFlow Lite/ONNX-runtime) for pattern scoring. Configurable data thinning and event tagging cut bandwidth and cloud costs by up to 30%.
Power & Environmental
- Input Power: 9–36 VDC (reverse polarity & surge protection). Typical 4–8 W.
- Operating Temp: −10 °C to +60 °C (industrial); Storage −20 °C to +70 °C; Humidity 5–95% RH non-condensing.
Security
- • Secure boot & signed firmware; encrypted config vault.
- • TLS 1.2+ with modern ciphers; client certs; rotate keys.
- • Role-based access; audit logs; brute-force lockout.
- • Encrypted at-rest buffers; physical tamper event (optional).
Cloud & Dashboard
Frinso Cloud
Real-time dashboards, alarms, device twins, OTA updates, user roles, projects, and reports. Ready connectors for utilities & industries.
Third-Party
Native MQTT/HTTPS works with Azure IoT, AWS IoT Core, EMQX, ThingsBoard, Ignition, or your SCADA via REST/MQTT bridges.
APIs & SDK
Configure devices via local web UI or REST. Publish/subscribe with MQTT topics per asset. Optional SDK exposes rule nodes (JavaScript/JSON) for transformations, alarm logic, and protocol adapters.
// Example MQTT topic
frinso/{projectId}/{siteId}/{deviceId}/telemetry
// Sample JSON payload
{
"ts": 1730342400000,
"asset": "pump-3",
"metrics": { "flow_m3h": 12.6, "pressure_bar": 2.1, "status": "RUN" },
"flags": { "low_pressure": false }
}Installation & Mounting
- Unbox; verify accessories (power adapter, antenna, DIN clip).
- Insert SIM(s) if using LTE; attach SMA antenna firmly.
- Mount on DIN-rail or wall using provided brackets.
- Wire RS-485/232 and I/O as per labels; check polarity.
- Apply 12/24 VDC power; wait for status LED steady green.
- Connect via Ethernet or device AP; open local UI to provision.
Applications
Smart Water
Flow/pressure DMA monitoring, NRW reduction, reservoir/tank automation.
Smart Energy
DG/solar/harmonics/consumption analytics; alarms and reports.
Industrial IoT
PLC/drive/SCADA bridging, line OEE, condition monitoring.
Predictive Maintenance
Rule-based events & on-device anomaly flags for early action.
Railways
IoT water quality, worker safety alerts, asset telemetry.
Smart Cities
Environmental stations, utilities dashboards, incident response.
Certifications & Compliance
- CE (EMC/Safety) – pending/available by SKU
- BIS (India) – applicable models
- RoHS compliant manufacturing
- Telecom approvals per carrier (where required)
FAQ
Can it work without internet?
Yes. Data is buffered locally and syncs when connectivity restores. Rules continue to run offline.
How do updates work?
Signed OTA updates via Frinso Cloud or local maintenance port.
Can I push data to our SCADA?
Yes. Use MQTT/REST bridges or Modbus TCP server mode (optional).
What about SIM management?
Works with major carriers; supports dual SIM and APN configs.
