Frinso Battery Operated AMR Ultrasonic Water Meter
Smart. Maintenance-Free. Tamper-Proof Flow Intelligence.
Non-mechanical smart metering for accurate consumption tracking across urban, rural and industrial networks. Wireless AMR, IP68-grade protection and 10+ years of battery life.
Product Overview
Fully sealed, IP68-certified, tamper-proof and maintenance-free meter that records, stores and transmits accurate flow data over secure wireless networks.
Minimum 10 years life — no external power.
No moving parts, no pressure loss, no air measurement.
RF / GPS / GPRS / LoRa / NB-IoT.
ISO 4064 / OIML R49 / MID.
Magnetic immunity tested up to 4000 Gauss.

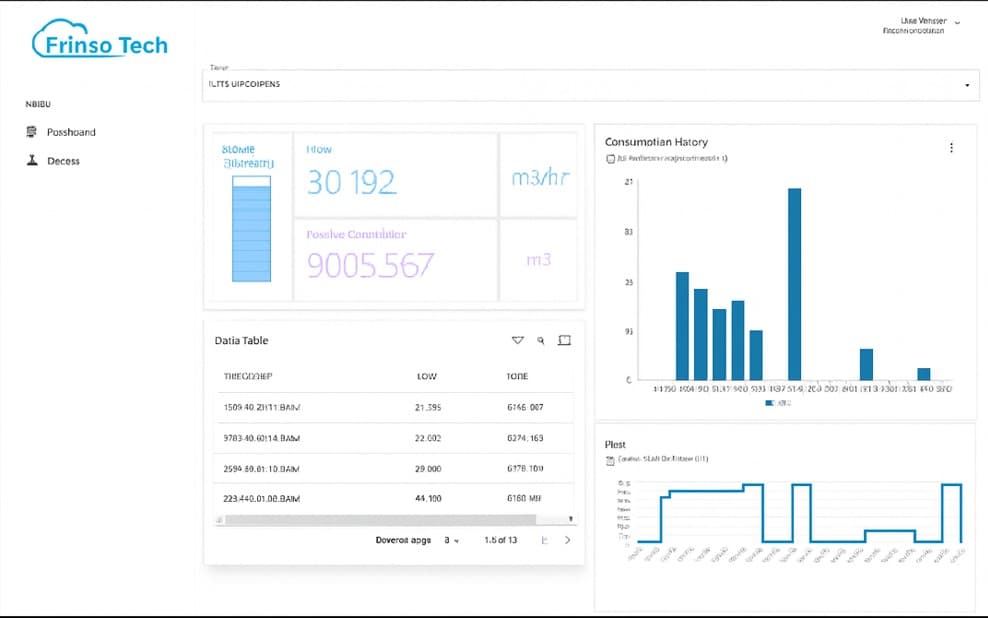

Seamless with Frinso Cloud Dashboard.
Technical Specifications
| Meter Type | Ultrasonic, Non-Mechanical, Battery Operated |
| Accuracy Class | Class 2 ±2% or better |
| Dynamic Range (Q3/Q1) | Minimum 100:1 |
| Display | 8-digit LCD (Flow & Total Volume) |
| Body Material | Brass / Bronze / SS / Engineered Polymer |
| Ingress Protection | IP68 – Fully Submersible |
| Power Supply | 3.6V Lithium Battery (Min. 10 Years Life) |
| Communication | RF / GPRS / GPS / LoRa / NB-IoT |
| Memory Storage | 12+ Months Daily / Monthly Data |
| Operating Temp. | 0°C – 50°C (ambient) |
| Pressure Rating | PN16 |
| Orientation | Any position (horizontal / vertical) |
| Certification | ISO 4064, OIML R49, MID |
| Anti-Tamper | Magnetic Immunity (tested up to 4000 Gauss) |
Smart AMR Connectivity
Seamless visibility — from underground chambers to cloud dashboards.
RF / LoRa / GPRS / NB-IoT options.
Consumption, alerts and trend analytics.
Read/Write parameters without site visits.
Low battery, reverse flow, leakage events.
Works with SCADA & Frinso IoT Platform.
Data encryption + reverse flow detection.
Intelligent Analytics
Leaks, tampering, reverse flow.
Demand forecasting and peak hours.
Adaptive sampling extends life.
12 months daily/monthly records.
Integration Example: Battery AMR Meter + Frinso FlowLinc Gateway + AI Dashboard = Smart Water Zone.
Applications
AMR for household & DMA connections.
SCADA + central dashboards.
Long-life meters for remote areas.
Process water consumption metering.
Sub-metering for billing.
Mission Bhagiratha / AMRUT / JJM.
Main + sub-distribution flow tracking.
Leakage control & verification.
Design & Durability
Fully enclosed, submersible-ready design.
Protection up to 4000 Gauss.
No wear, no recalibration.
Dust, vibration and corrosion resistant.
Project References
Why Choose Frinso AMR Ultrasonic Meter
No Moving Parts — Maintenance-free & long life
RF / GPS / GPRS / LoRa compatible
10+ Year Battery Life
IP68 Rated & Tamper-Resistant
Plug-and-play with Frinso Dashboard
Made in India — Frinso support
Powerless Doesn’t Mean Connectionless.
Explore the battery-powered EMF with real-time IoT connectivity and AI analytics for dependable off-grid water intelligence.
