FRINSO TECHNOLOGIES PVT. LTD.

FRINSO V1.0 – CGWA / CPCB Telemetry

Certified-ready IoT edge for groundwater abstraction and environmental compliance. Streams flow, level, and quality data to mandated government portals with strong security and reliability.

Direct CGWA/CPCB API Push 4G/LTE • Ethernet • Wi-Fi Modbus RTU/TCP • Pulse TLS + Signed OTA Tamper & Power Loss Logs
Download Brochure
Request Demo

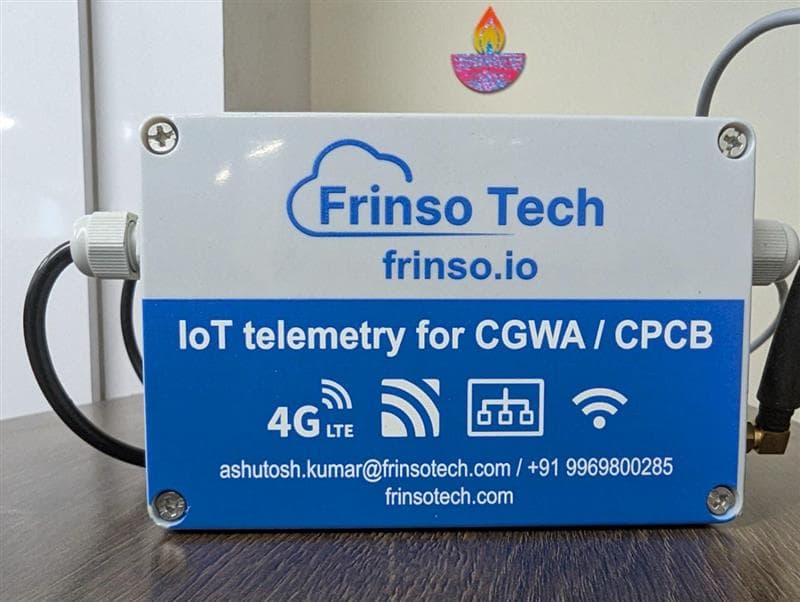

FRINSO V1.0 CGWA/CPCB Telemetry

*Representative model with CGWA/CPCB labeling.

Documentation Index

OverviewKey FeaturesSupported SensorsHardware SpecsProtocols & PayloadCGWA/CPCB ComplianceInstallationOperations & AlarmsSecurityCloud & ReportsDownloadsFAQ

Overview

The FRINSO V1.0 CGWA/CPCB variant is a rugged Industry 4.0 IoT Edge gateway purpose-built for statutory telemetry. It collects water abstraction, groundwater level, and quality metrics from meters and sensors, validates them on-device, and securely publishes to CGWA/CPCB endpoints as per prescribed intervals, while also serving enterprise dashboards.

Key Features

  • Meter Integrations

    Modbus flow meters, pulse meters, piezometers, WQ sensors (pH/TDS/EC/DO).

  • Sampling & Push

    Locally configurable sampling (e.g., 1–15 min) and push intervals as per guidelines.

  • Govt. API Ready

    Native integrations for CGWA/CPCB; retry, ACK tracking, and audit trails.

  • Power Resilience

    Wide 9–36 VDC input, brownout protection, data buffering during outages.

  • Tamper Evident

    Covers door open, meter disconnect, SIM/antenna removal, RTC drift.

  • Remote Ops

    OTA updates, remote diagnostics, logs, and provisioning from Frinso Cloud.

Supported Sensors & Meters

Flow Meters

Electromagnetic/Ultrasonic; Modbus or pulse output.

Groundwater Level

Piezometric level transmitters (4–20 mA / Modbus).

Water Quality

pH, EC/TDS, DO, ORP (4–20 mA / Modbus).

Pressure

0–10 bar 4–20 mA transmitters.

Valve/Pump Status

Digital inputs for RUN/STOP, trip, tamper.

GPS (opt.)

Geo-tagging and time sync for remote wells.

Hardware Specifications

Compute

  • • ARM Cortex-A53 quad-core, 2 GB RAM, 8–32 GB eMMC
  • • RTC with battery; hardware crypto engine

Connectivity

  • • 4G/LTE Cat-4 (dual SIM), 3G/2G fallback
  • • Ethernet 10/100, Wi-Fi 2.4 GHz (client/AP)
  • • External SMA LTE antenna

I/O

  • • 2× RS-485 (isolated), 1× RS-232
  • • 4× DI (opto), 2× DO (relay), 2× AI (4–20 mA)
  • • USB-C service; micro-USB debug

Mechanical & Power

  • • IP65 industrial enclosure; DIN-rail/wall mount
  • • 9–36 VDC input; surge & reverse protection
  • • −10 °C to +60 °C; 5–95% RH non-condensing

Protocols & Payload

Ingest

Modbus RTU/TCP, pulse counting, analog scaling, debouncing, and validation rules on-device.

Publish

MQTT/HTTPS to CGWA/CPCB endpoints with TLS. Store-and-forward and QoS to prevent data loss.

// Example HTTPS payload (CPCB)
{
  "siteId": "SITE-001",
  "deviceId": "FRV1-ABC123",
  "ts": "2025-10-31T06:15:00Z",
  "metrics": {
    "flow_m3h": 14.2,
    "totalized_m3": 78123.6,
    "gw_level_m": 36.4,
    "ph": 7.4,
    "ec_us_cm": 512
  },
  "status": { "tamper": false, "power": "OK", "signal_dbm": -76 }
}

CGWA / CPCB Compliance

  • Sampling & Push: Configurable (typ. 5–15 min sampling; 15–60 min push) as per circular/consent.
  • Data Retention: Local buffer & encrypted storage; automatic backfill on link restore.
  • Tamper: Meter disconnect, enclosure open, RTC drift, SIM/antenna removal, power events.
  • Reports: Daily/Monthly abstracts for audits; CSV/JSON exports.

Installation

  1. Mount IP65 enclosure near meter/piezometer; ensure antenna clearance.
  2. Wire RS-485/analog/digital lines per labels; verify polarity and shielding.
  3. Insert SIM(s), set APN; power-on with 12/24 VDC supply.
  4. Provision via local web UI; select sensors, sampling, and CGWA/CPCB endpoint keys.
  5. Run test push and confirm ACK/status on portal.

Operations & Alarms

  • • On-device thresholds for dry-run, abnormal level/flow, sensor fault.
  • • SMS/Email/Push via Frinso Cloud; webhook to plant SCADA.
  • • Watchdog, auto-recovery, link failover (SIM-A → SIM-B → Wi-Fi/Ethernet).

Security

  • • TLS 1.2+ to portals; device & server certs; key rotation.
  • • Secure boot, signed firmware; role-based users; audit logs.
  • • Encrypted buffers at rest; brute-force lockout; optional tamper switch.

Cloud & Reports

Frinso Cloud

Dashboards, alarms, device management, reports (daily, monthly, abstract), exports.

Integrations

MQTT/REST to enterprise systems; push mirrors to customer SCADA/ERP.

Downloads

CGWA/CPCB Telemetry Brochure (PDF)
Quick Start – CGWA Setup (PDF)
API Mapping Guide (PDF)

FAQ

Will it work if the site loses internet?

Yes. Data is buffered locally and auto-backfilled when connectivity returns.

How frequently does it send data?

As per consent order—commonly 15–60 minutes (configurable).

Can we view data on our own portal?

Yes. We mirror to Frinso Cloud and can forward to your SCADA/ERP via APIs.

Is enclosure outdoor-ready?

Yes—IP65 model with gland sealing, surge-protected power.

Need CGWA/CPCB Telemetry Now?

Our team can provision SIMs, onboard meters, and get your site compliant quickly.
