Frinso Ultrasonic Monitoring Device
Solar & Non-Solar Powered. Real-Time Level Intelligence.
Non-contact ultrasonic sensing with solar or DC power options. Seamlessly integrated with Frinso Cloud Dashboards and SCADA systems — reliable even in remote locations.
Solar Powered Model
Ideal for remote and outdoor installations. Built-in solar panel with smart battery management for 24/7 autonomous operation.
Non-Solar (DC Powered) Model
Compact and cost-effective option for industrial or indoor applications with existing power sources.
“Power it your way — Solar or Non-Solar, the intelligence remains the same.”
Compact. Connected. Powerful.
High-frequency Time-of-Flight measurement for accurate, maintenance-free level sensing.
Reliable data even in power-deficient areas with smart energy management.
LoRa / GSM / GPRS connectivity to cloud or SCADA for live visibility.
View live levels, alerts, and analytics anywhere on Frinso Cloud.
Fully sealed for outdoor use across harsh Indian climates.
Quick setup, minimal wiring, and OTA updates for zero downtime.

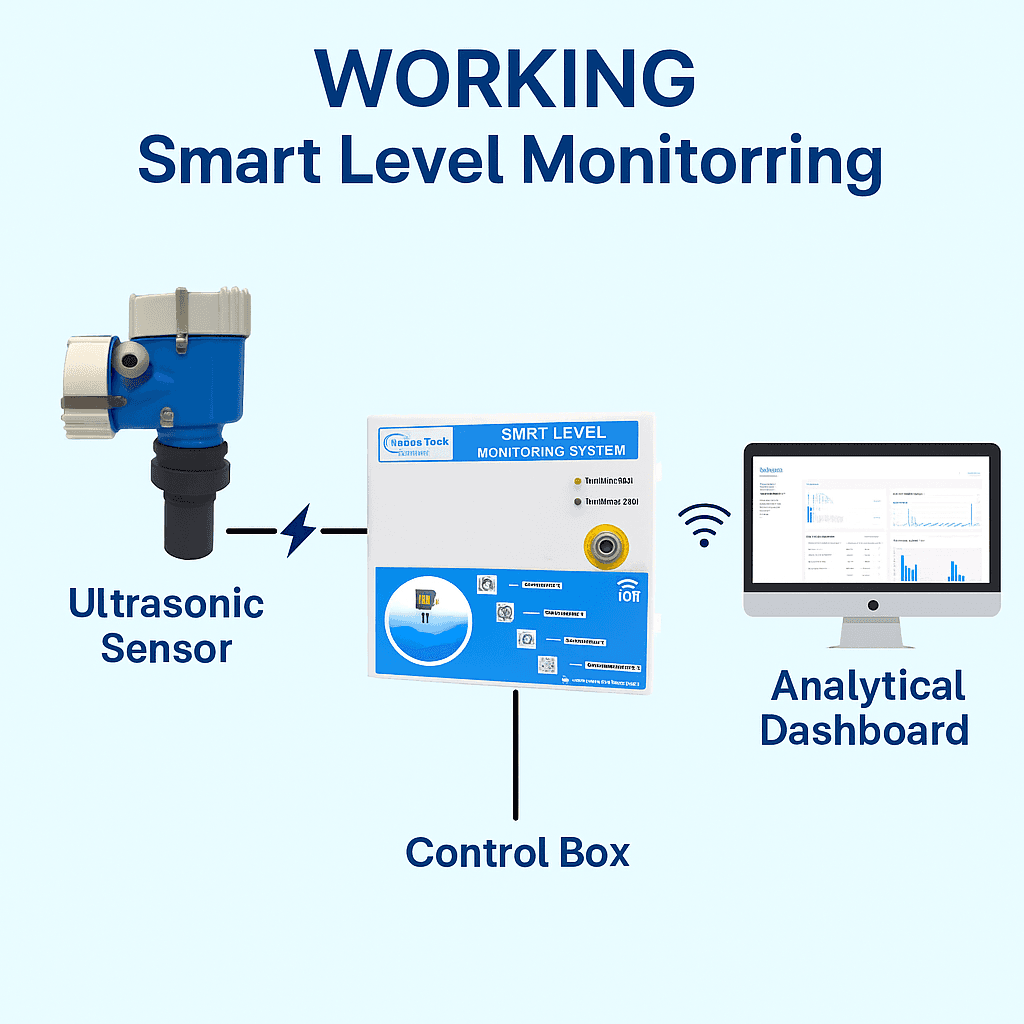

Smart Ultrasonic Technology
The device emits ultrasonic waves toward the liquid surface. The echo reflected back is detected and processed by a microcontroller, converting Time-of-Flight into accurate level readings.
Data is transmitted wirelessly to Frinso IoT Cloud or SCADA systems for real-time monitoring and trend analysis.
Accurate, efficient, and completely non-contact — designed for modern water infrastructure.
IoT & SCADA Integration — From Tank to Cloud
- 📶 LoRa / GSM / GPRS communication
- 📊 Live dashboard with trend analytics & alarms
- 🔔 SMS / Email alerts for critical levels
- 🔗 Seamless integration with SCADA, EMS, and BMS
- ☁️ Cloud-based control & report generation
Designed for Every Scenario
Monitor water levels in storage tanks, sumps, and reservoirs.
Real-time monitoring of raw water and process liquids.
Digitize distribution networks with central control.
Perfect for rural, off-grid, or temporary setups.
Technical Specifications
| Measuring Range | 6m / 10m / 15m |
| Technology | Ultrasonic Time-of-Flight |
| Power Supply | Solar + Battery / 18–28V DC |
| Output Interface | 4–20mA / RS485 / LoRa / GSM / GPRS |
| Accuracy | ±0.3% F.S. |
| Protection Class | IP68 |
| Enclosure Material | ABS / Polycarbonate |
| Battery Backup | 10+ Days (Solar Model) |
| Data Storage | Cloud + Local Memory |
| Display | OLED / Remote Mobile Dashboard |
| Integration | SCADA, EMS, Frinso Cloud, API Support |
Installation & Maintenance
- • Wall, pole, or tank-top mounting options.
- • No mechanical contact with liquid; auto-calibration feature.
- • Over-the-air firmware updates (IoT-enabled).
- • Minimal maintenance with power-optimized operation.
Green Monitoring, Greener Planet
Minimize manual operations, reduce energy use, and enable real-time optimization with Frinso’s Solar Ultrasonic Monitoring Device.
Powering India’s Digital & Green Water Revolution. 🌱
Smarter Measurement. Cleaner Energy. Real-Time Control.
Frinso Ultrasonic Monitoring Device — Smart. Sustainable. Always Connected.
