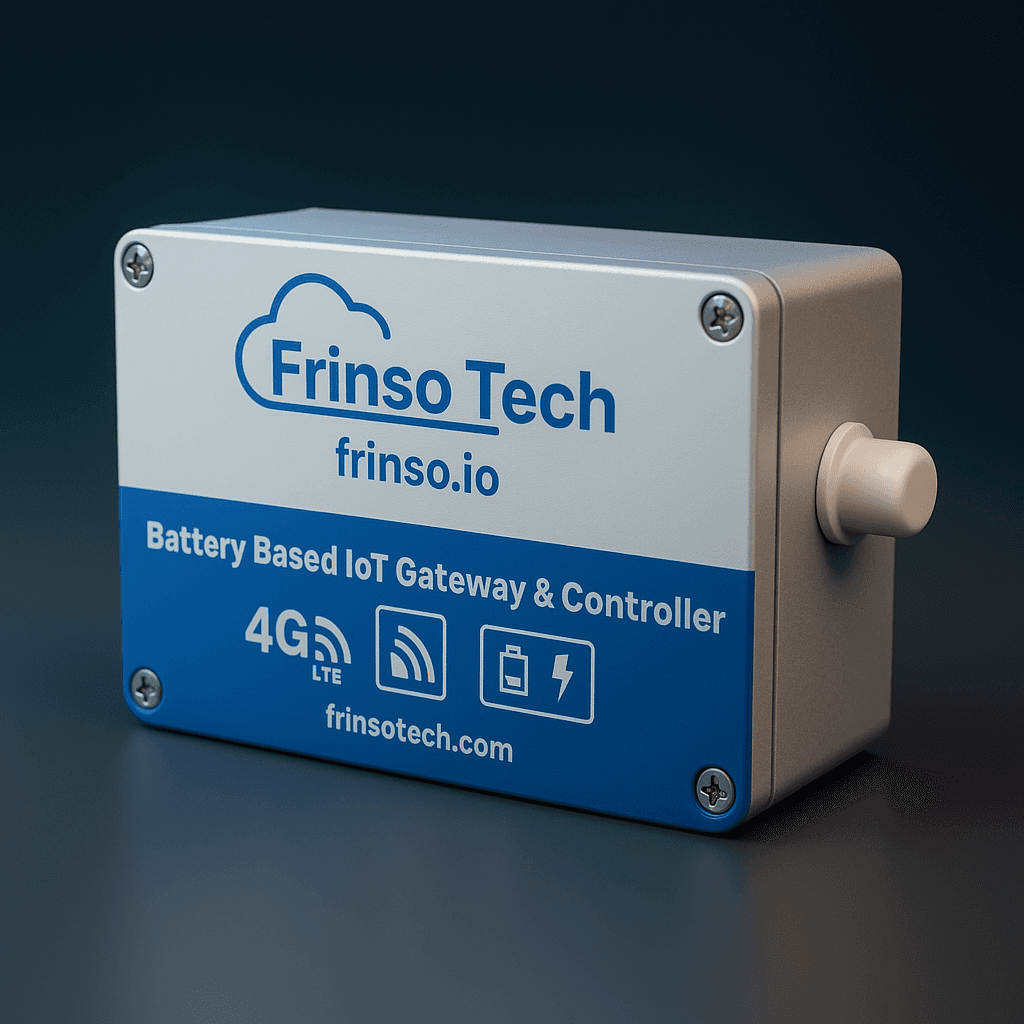

FRINSO F10
Smart Battery IoT Edge Device
Battery-optimized Industry 4.0 edge device for remote telemetry and control — designed to run lean, connect anywhere and deliver secure data to any cloud.
Product Overview
FRINSO F10 delivers always-on telemetry for battery, solar and off-grid applications. It bridges field devices to the cloud using secure wireless connectivity and intelligent edge processing.
Highlights
Battery-Powered Edge
Ultra-low-power design with smart power modes for long-field life.
Multi-Network Connectivity
4G/LTE, GSM, Wi-Fi, LoRa, NB-IoT — connect anywhere.
Open Integrations
Modbus RTU/TCP, MQTT/HTTPS for SCADA and cloud bridges.
Built-in I/O
Analog/Digital inputs & relay outputs for direct sensor control.
Cloud Agnostic
Works with Frinso Cloud, AWS, Azure, or custom MQTT/REST APIs.
Secure by Design
TLS/SSL, signed OTA, role-based access, and audit logs.
Features & Capabilities
- • Real-time monitoring of electrical, environmental and asset parameters.
- • Edge rules & analytics for event-based control and bandwidth savings.
- • Offline buffering with encrypted local storage and auto-sync.
- • Secure FOTA updates — no site visits required.
- • Battery health telemetry, charge/discharge profiling and alarms.
Technical Specifications
Power Profile
Battery-optimized; ultra-low idle; scheduled wake
Connectivity
4G/LTE, 2G, Wi-Fi 2.4 GHz, LoRa, NB-IoT, GNSS
Interfaces
RS-485 / RS-232, 2× AI, 4× DI, 1× DO (relay)
Protocols
Modbus RTU/TCP, MQTT (TLS), HTTPS/REST, NTP
Processing
ARM edge MCU with on-device filtering & rules engine
Storage
Encrypted local buffer (16 GB typ., expandable)
Security
TLS/SSL, X.509 certs, signed OTA, RBAC
Enclosure
Rugged ABS / metal, DIN / wall mount
Environment
−20 °C to +70 °C, 95 % RH (non-condensing)
Applications
Industrial IoT
Remote assets where mains power is unavailable or intermittent.
Smart Infrastructure
BMS sub-meters, utility kiosks, remote valve chambers.
Energy & Solar
PV strings, off-grid systems, DG telemetry with battery insights.
Agriculture
Field sensors, pumps, and irrigation controllers via LoRa/NB-IoT.
Environment
Air/water quality nodes, leak detection, pressure probes.
Healthcare & Logistics
Cold-chain monitoring and compliance logging.
Downloads & Resources
Frequently Asked Questions
How long can F10 run on battery?
Depends on sampling intervals and radio usage; optimized for months of autonomous operation.
Does it support LoRa / NB-IoT?
Yes — along with 4G/LTE, GSM and Wi-Fi for hybrid deployments.
Is offline operation supported?
Yes. Data is stored locally and auto-synced on network recovery.
How secure is the device?
TLS/SSL transport, signed firmware, role-based users and audit logs.
Power Remote Sites with FRINSO F10
Deploy secure, battery-optimized telemetry for energy and infrastructure projects worldwide.
